GROUND REMOTE CONTROL CRANES
SM-GTP-102
DESCRIPTION

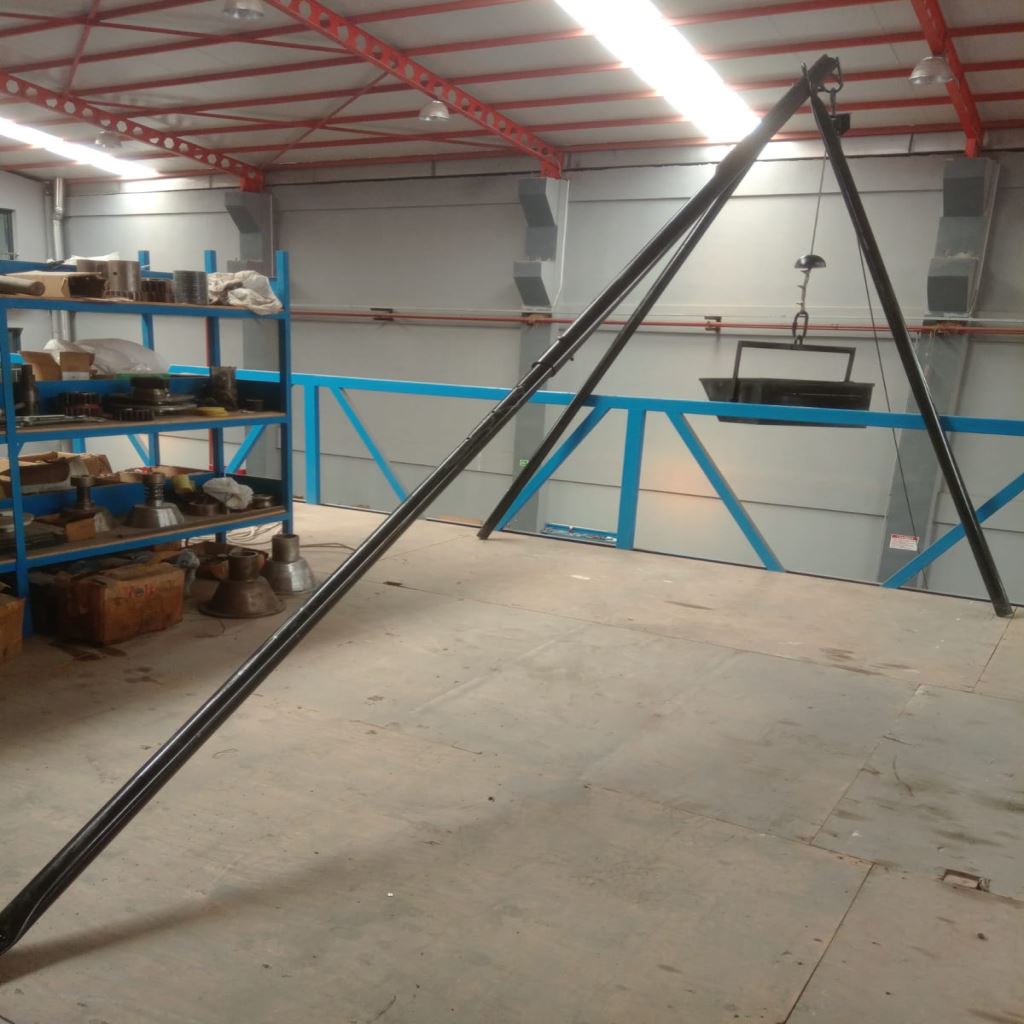

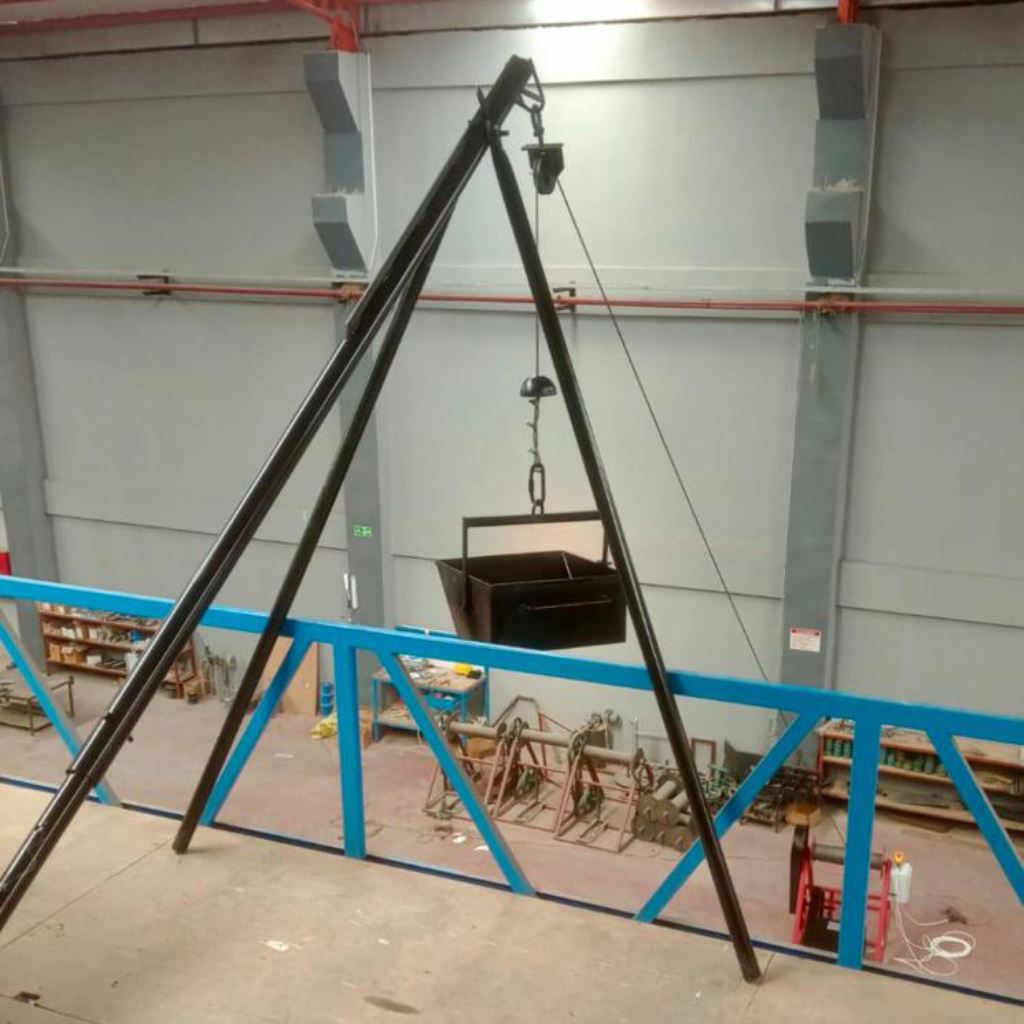

Ground controlled freight crane is used for pull up of construction materials to the working area in construction, warehousing and repair works. It is controlled by remote control or cable control from the ground.
SM-GTP-102 Technical Data Overview
| TECHNICAL SPECIFICATIONS | SM-GTP-102 |
|---|---|
| Lifting capacity | 500 Kg |
| Engine Type and Power |
Electric (Three Phase) 4 Hp 1400 D / d 220-380 C |
| Climbing Speed | 0.5 m / s |
| Bucket Volume | 125 lt. |
| Bucket Number | 2 Pieces |
| Brake system | Magnetic Disc Brake |
| Control System | Electric Control |
| Three Foot Features | SM-GTP-102 |
|---|---|
| Carrier Pipe | 2 1/2 inches |
| Pipe Thickness | 3 mm |
| Sewing Pipes | 2 Inch, 3 mm Tube |
| Rear Connection | 30 x 10 mm Lama |
| Weight Measures | 60 Degree |
| Sewing Foot Interim Measurements | 230 cm |
| Carrier Reel | 140 mm |
| Hook | Reversible roller from 18 mm |
