FACILITY CLEANING SYSTEMS
SM-GAP-102
DESCRIPTION

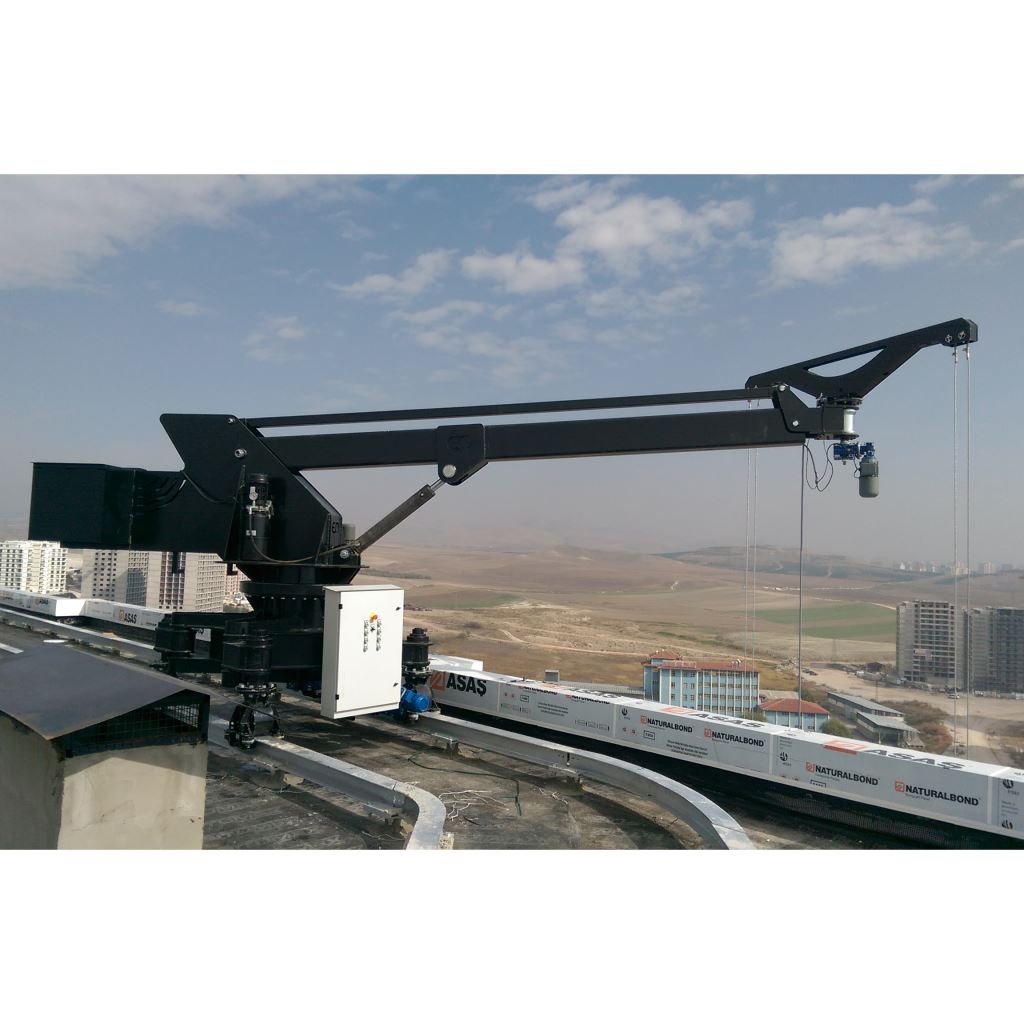

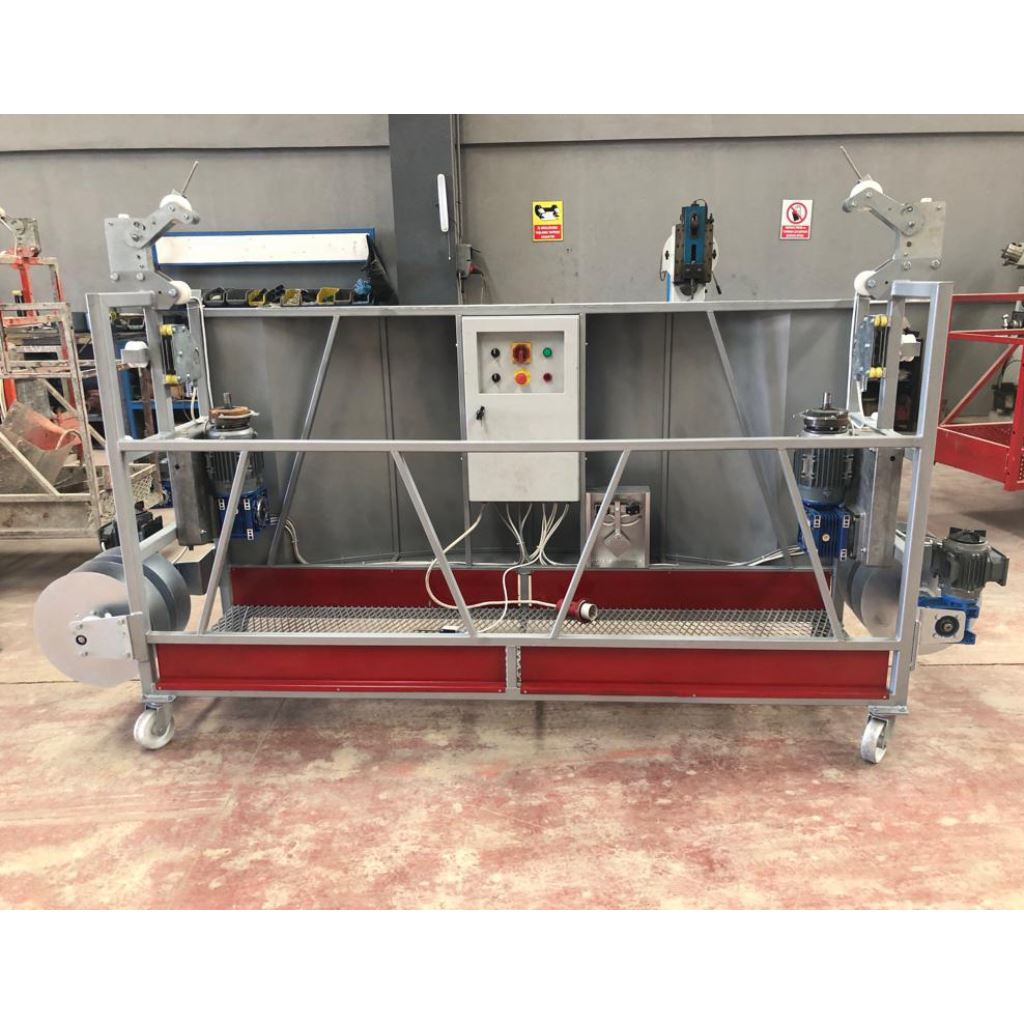

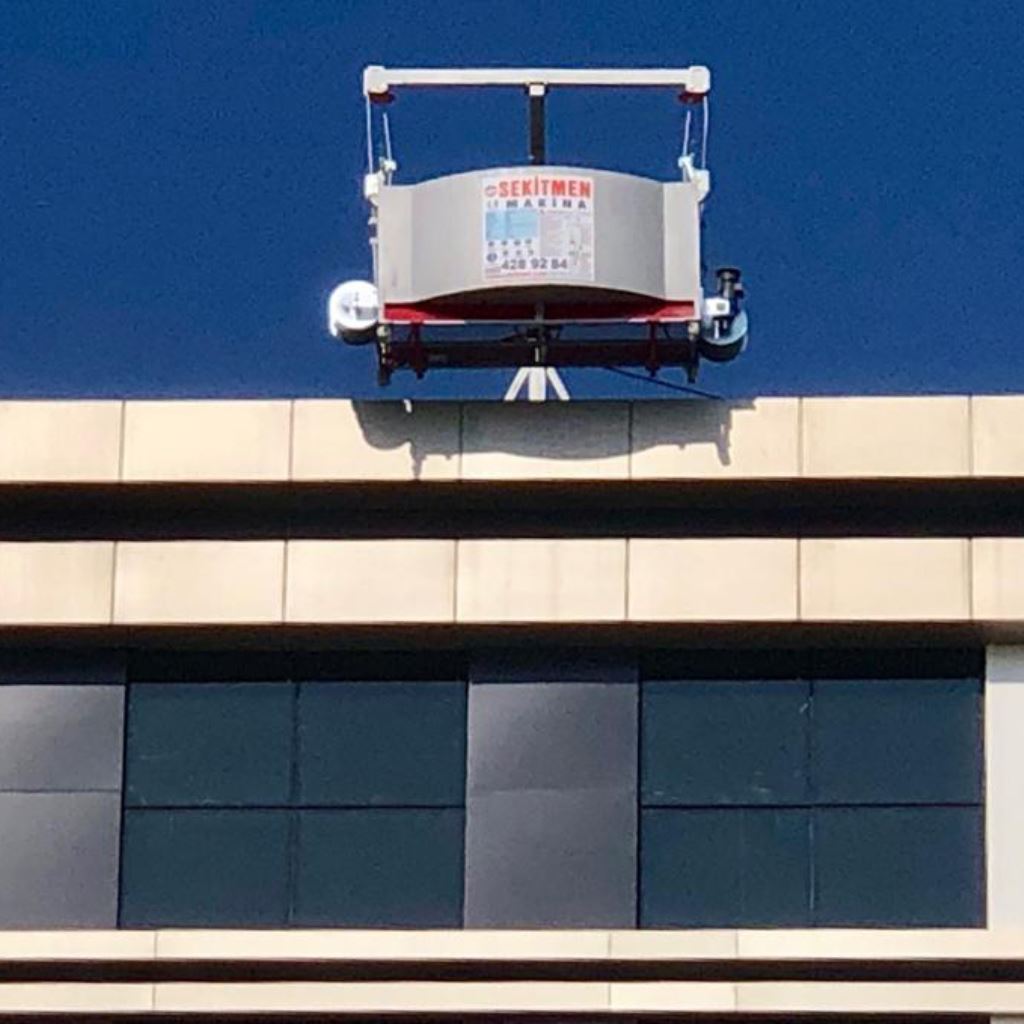

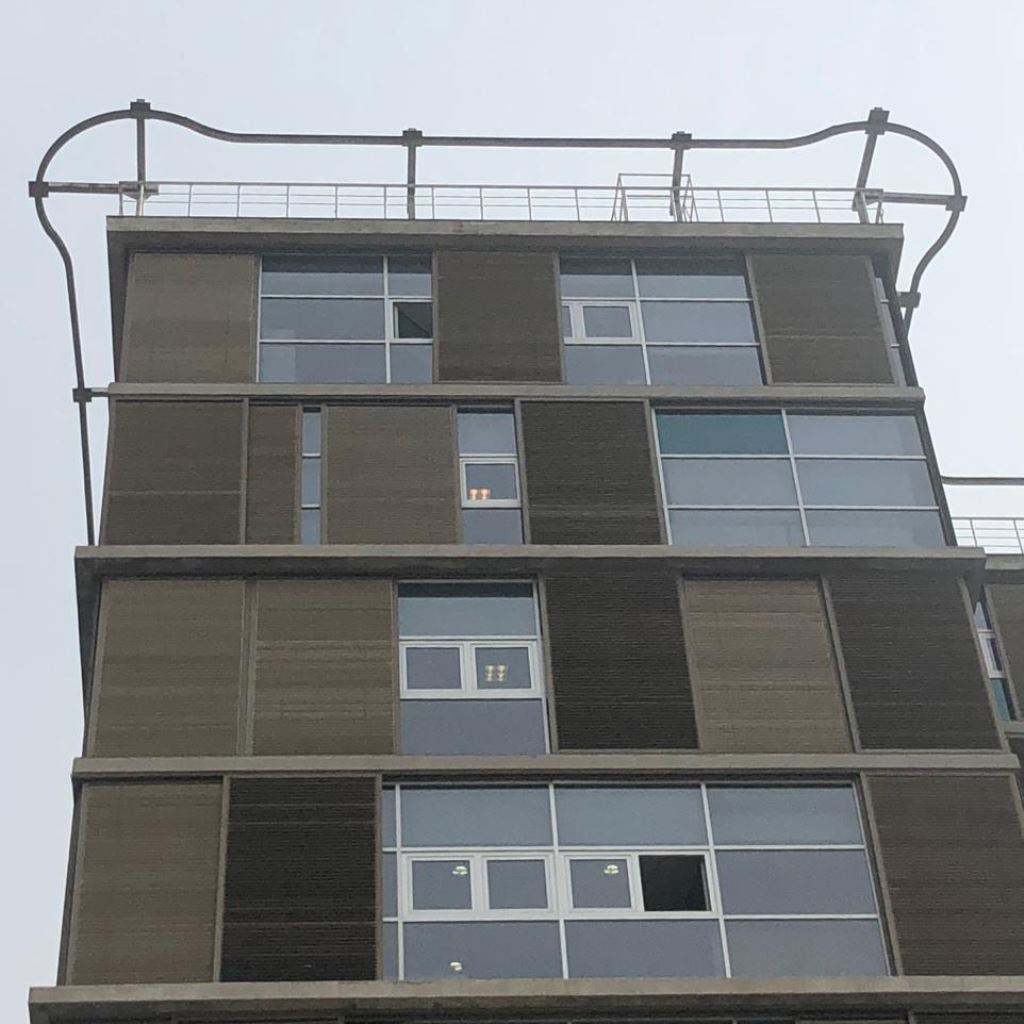

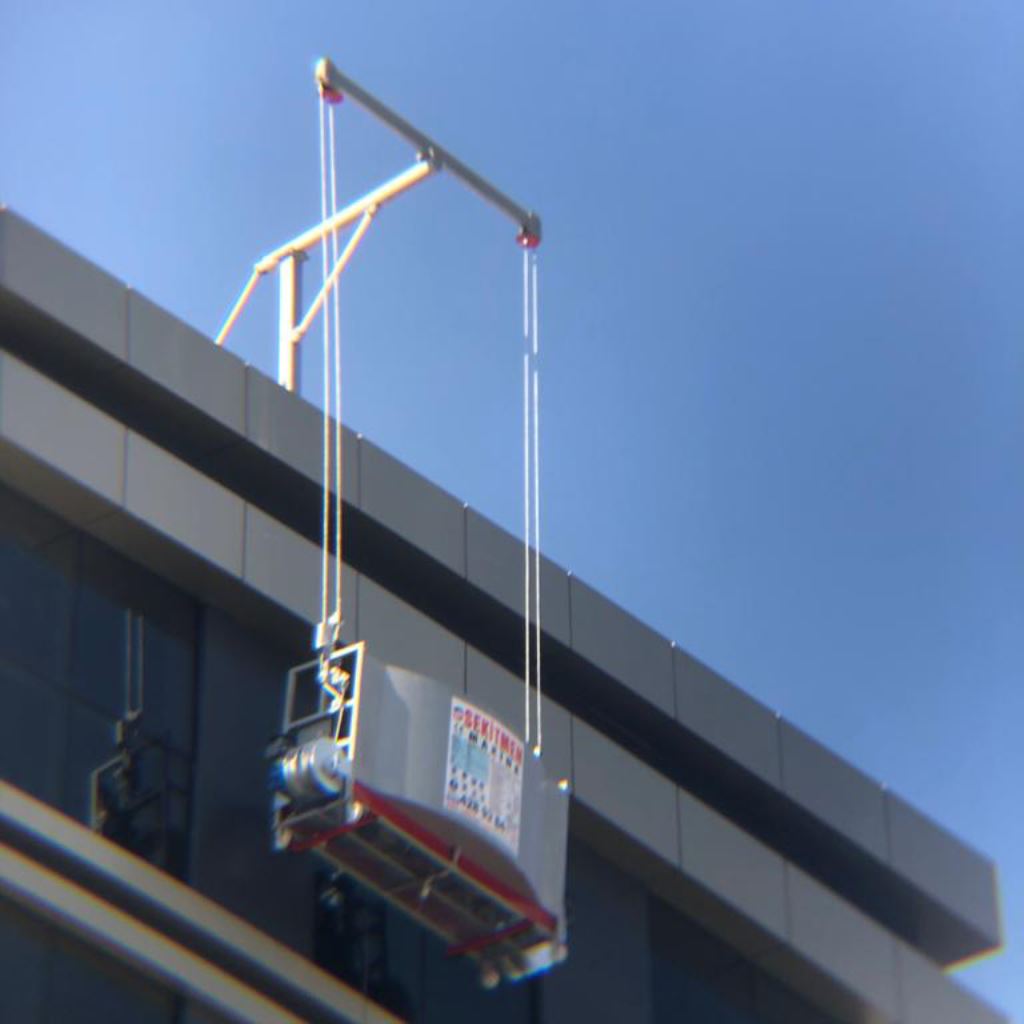

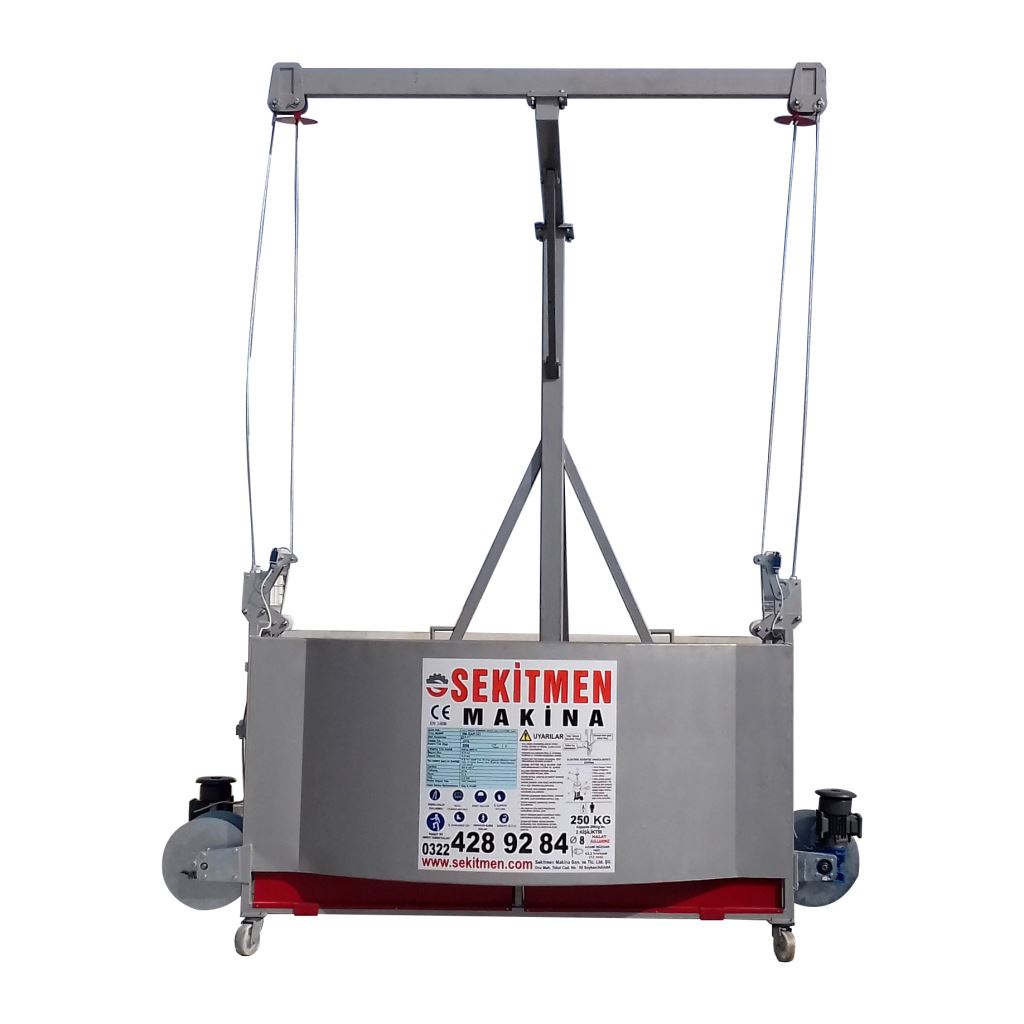

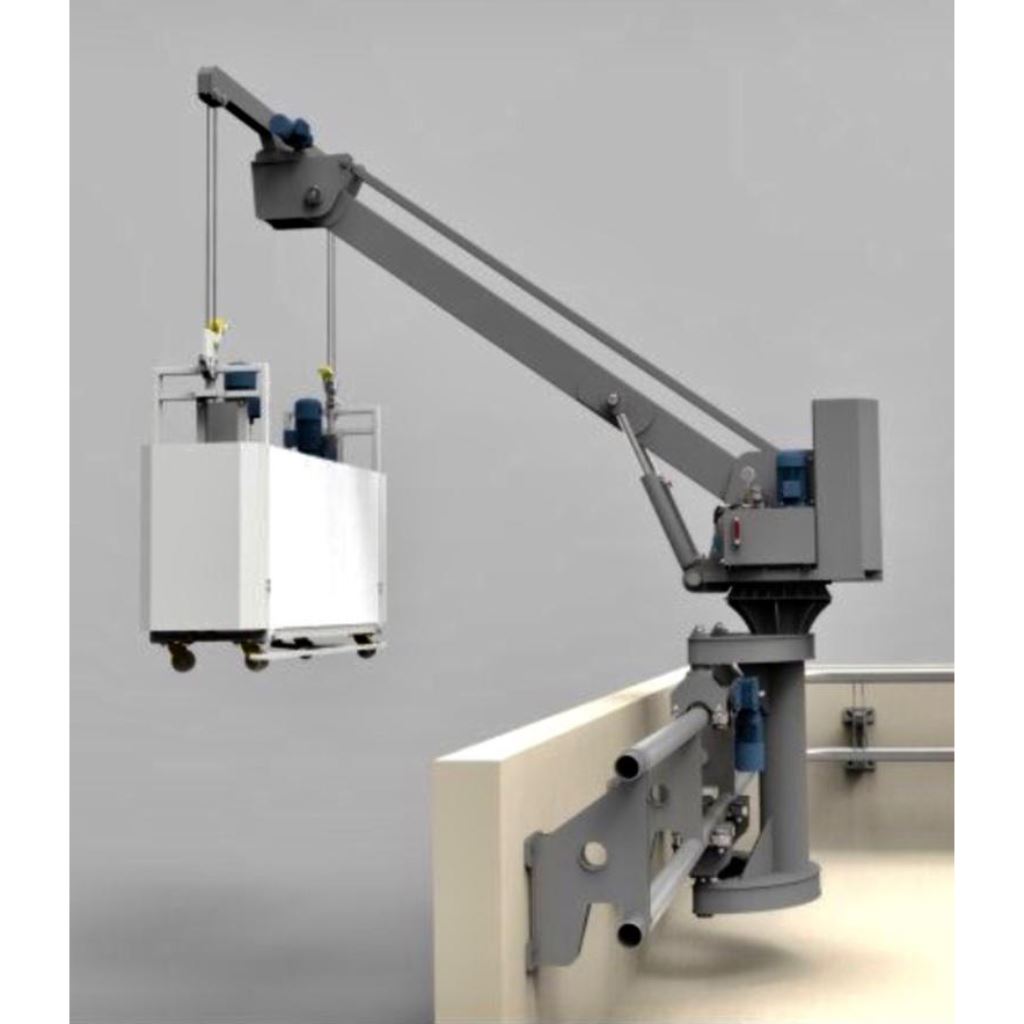

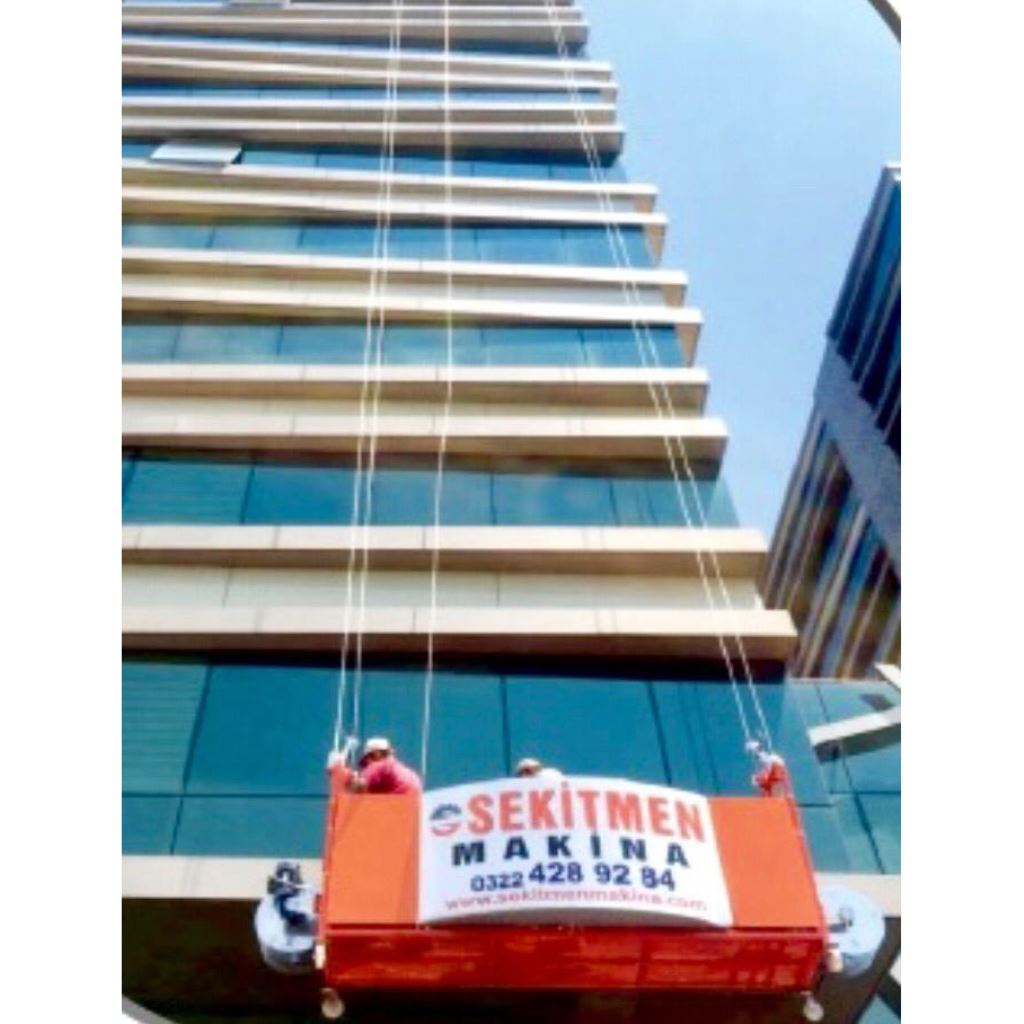

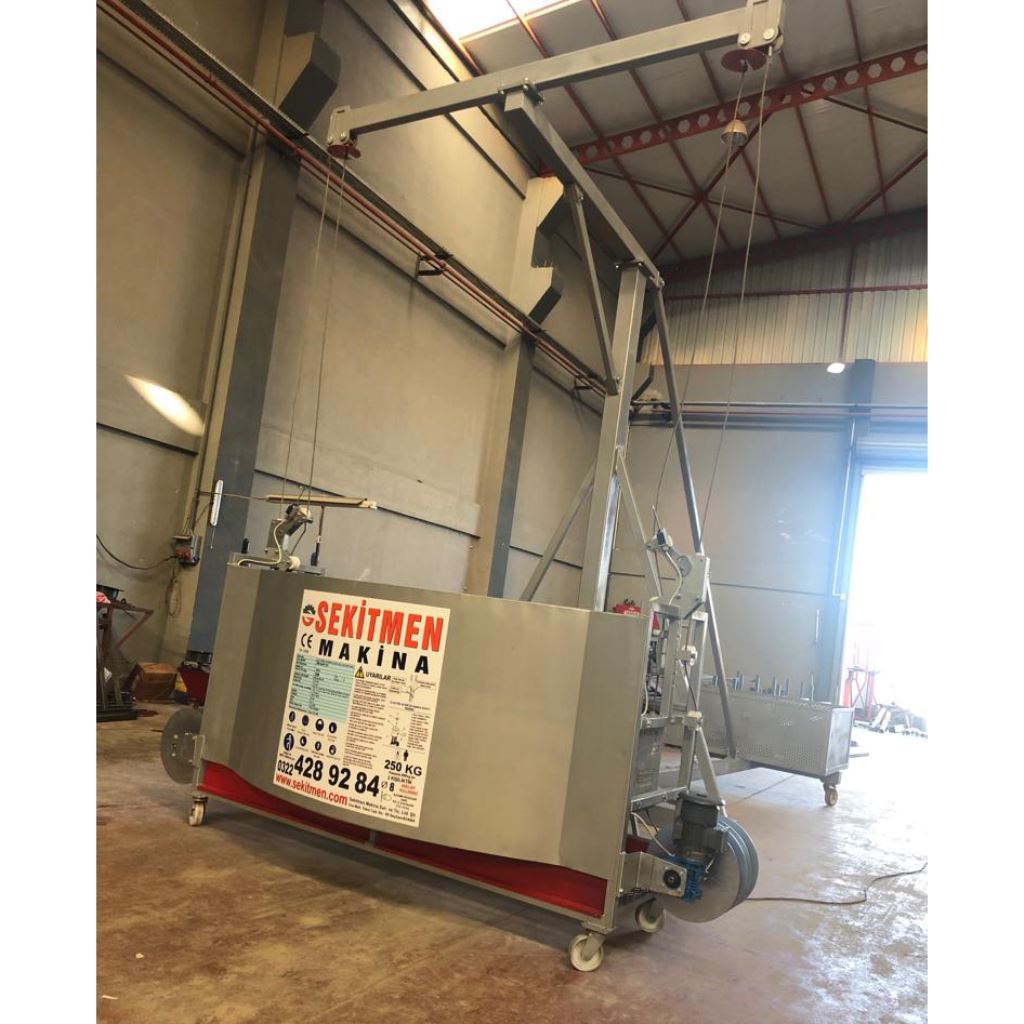

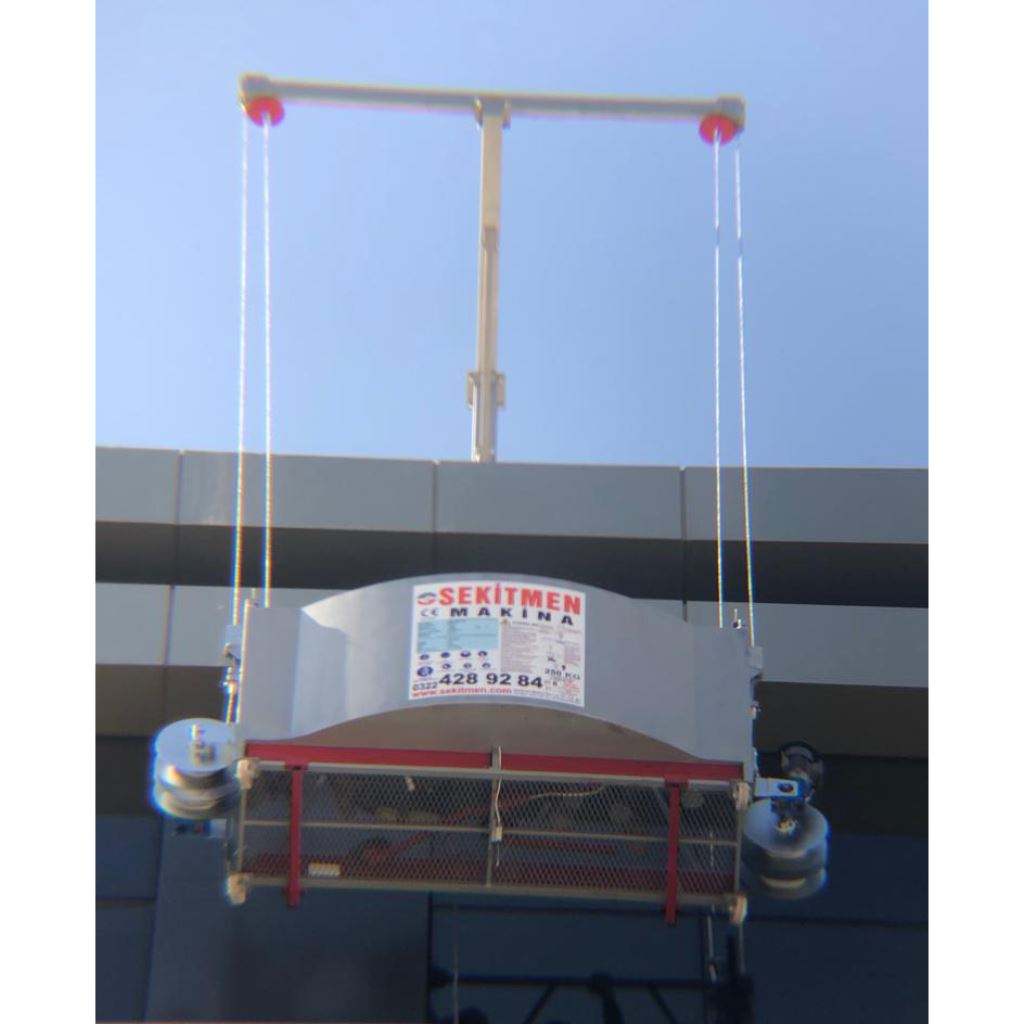

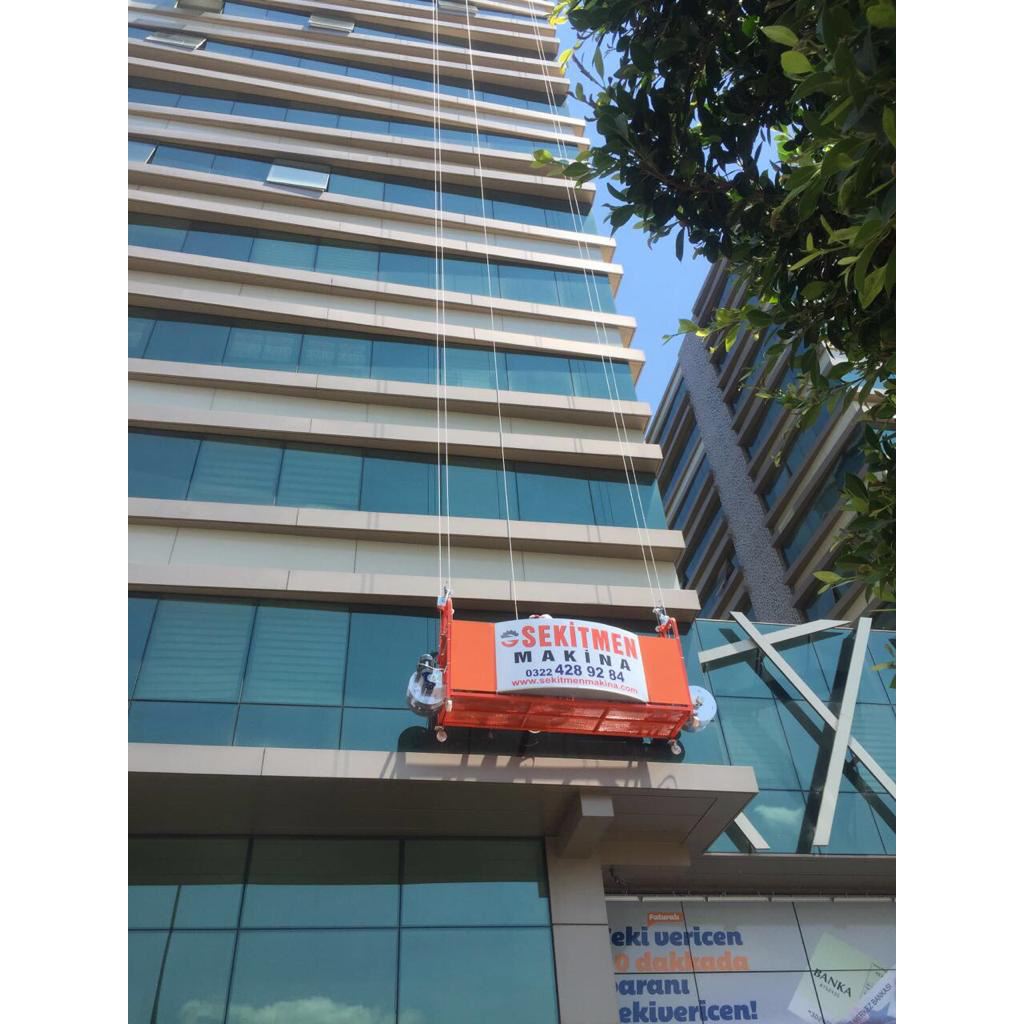

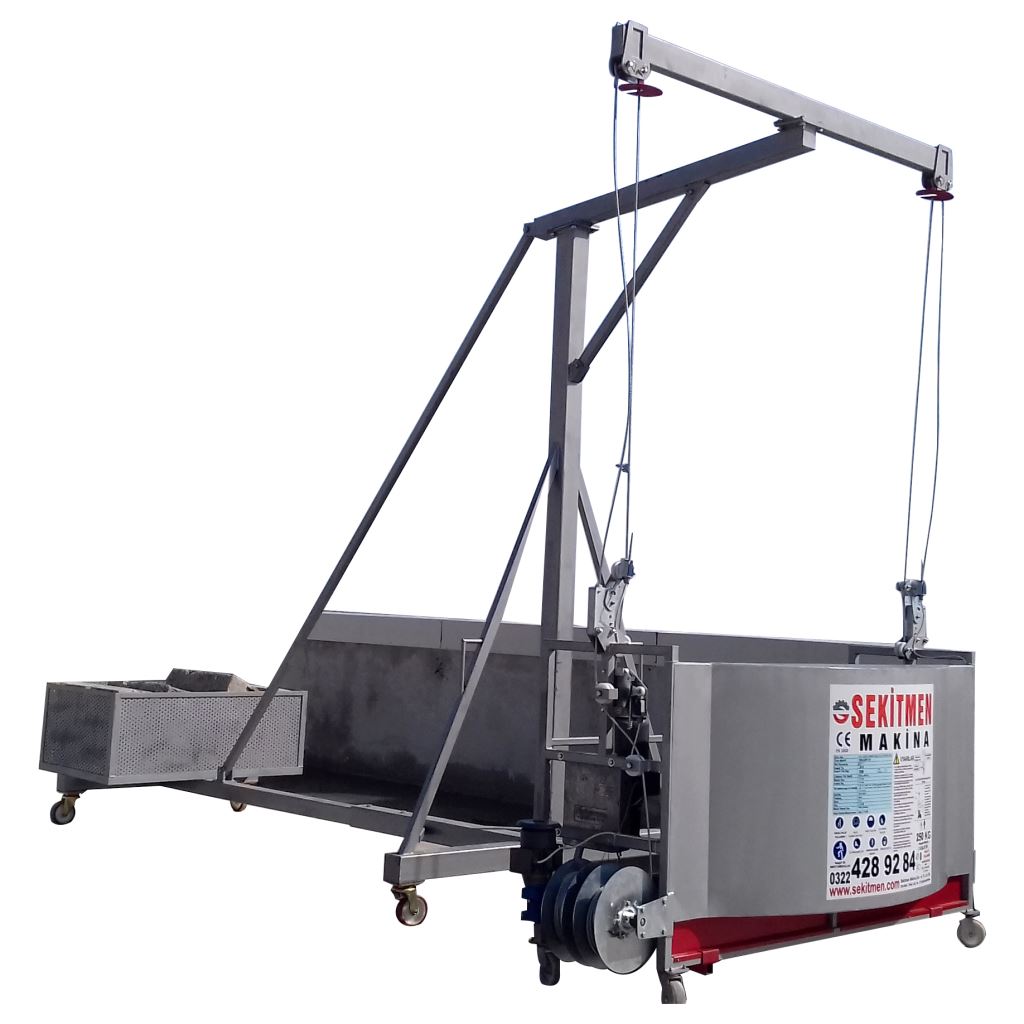

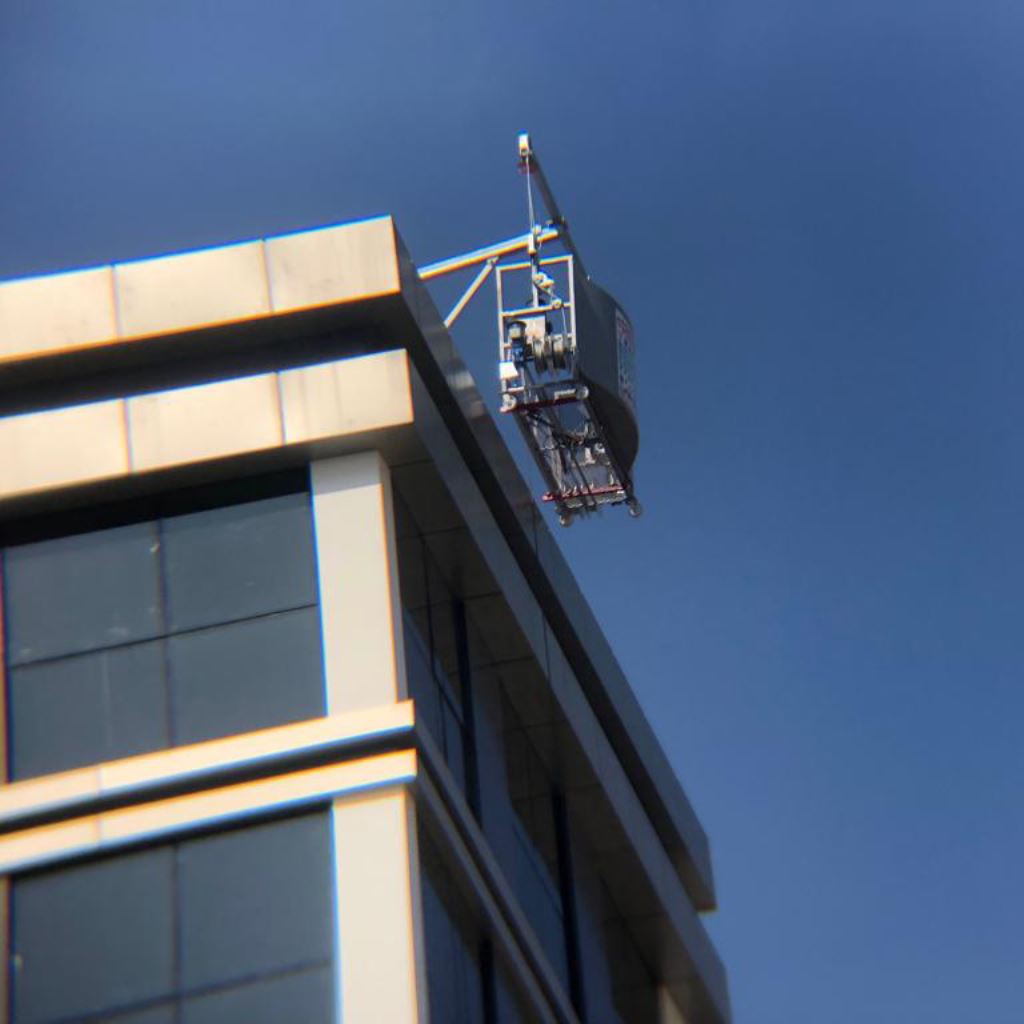

The machines manufactured by our company also include facade cleaning systems (glass cleaning scaffolds). Facade cleaning systems, which we produce with different capacities and to meet different needs, are manufactured to comply with European norms like all of our products. 360 degree rotating rail or wheel system around the building according to the need to determine the project is produced and produced.
SM-GAP-102 Technical Data Overview
| TECHNICAL SPECIFICATIONS | SM-GAP-102 (500 KG) |
|---|---|
| Lifting capacity | 500 Kg |
| Motor Power and Number | 2 X 1.1 kw |
| Climbing Speed | 0.15 m / s |
| Platform Dimensions (m) | 2 m |
| Safety Systems | Electromagnetic brake / 2 pcs block stop brake |
| Rope Diameter | 8 mm (6x19) Galvanized |
| Rope Winding Mechanism | 2 Pieces |
| Voltage | 380V |
| Security precautions | SM-GAP-102 |
|---|---|
| Emergency stop switch 1 piece |
 |
| Manual lowering system in case of power failure |
|
| 2 Block-Stop mechanisms in the case of wire rope |
|
| The tilt sensor is limited to 14 degrees. |
|
| Lower and upper limit switches |
|
| Overload detection system |
|
