SINGLE MAST AND DOUBLE MAST WORKING PLATFORM

SM-SK-101

DESCRIPTION

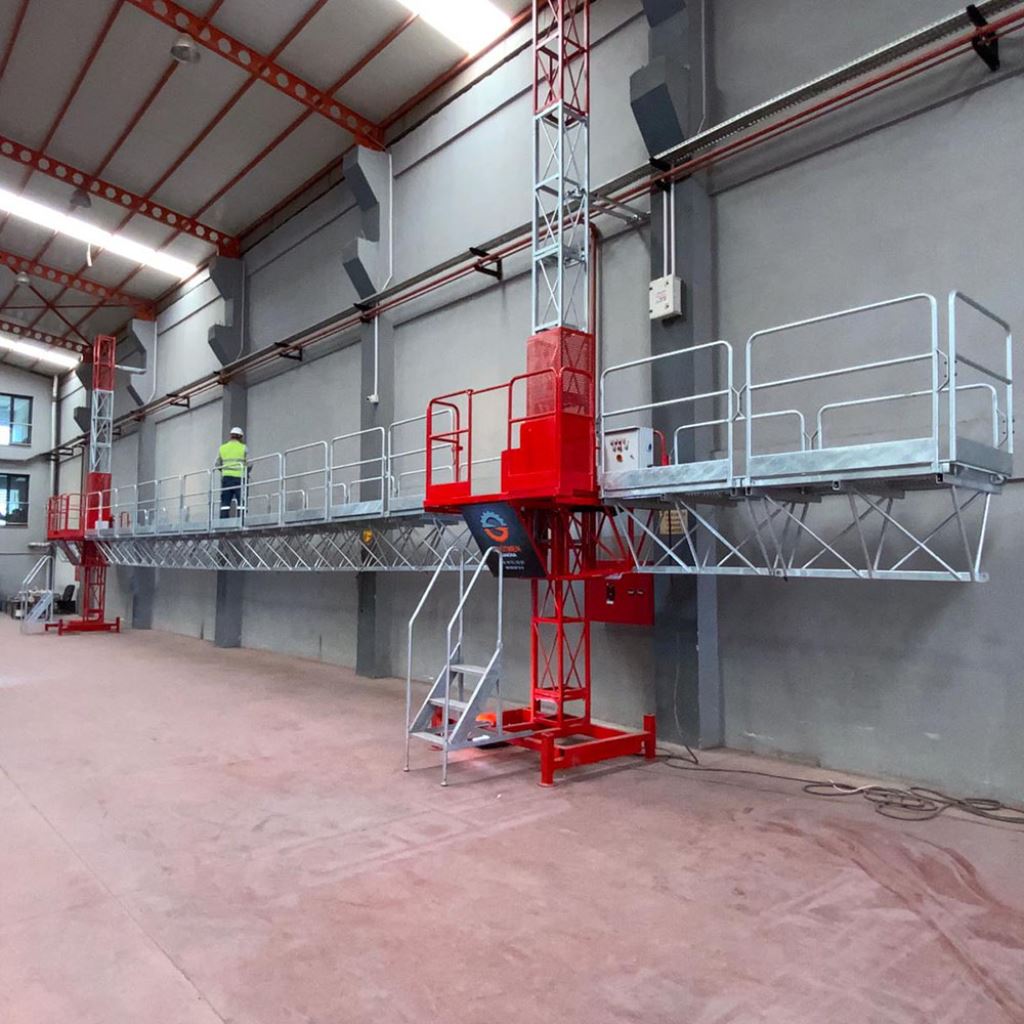

The SM-SK-101 mast climbing work platform, a medium-weight lifting machine and a work platform. Provides safety working conditions at facades of constructions.

The SS-SK-101 is designed for projects up to 300 meters. The maximum height with standard mounting is 135 meters, but mast height can be increased up to 300 meters.



The single mast SM-SK-101, starting from 4.2 meters, can grow up to 10 meters in length. The platform length can be extended up to 28 meters with two masts. The highest capacity of the single-mast version of the machine SK-102 is 2000 kg. The single mast machine can be converted to double mast version which can carry loads up to 4000 kg.

SM-SK-101 Technical Data Overview

Capacity SM-SK-101 Single SM-SK-102 Double
Max. platform length 10 m 28 m
Max. Lifting capacity / platform length 2000 kg / 4.2m 4000 kg / 11,9 m
  1700 kg / 7.4 m 3800 kg / 15,1 m
  1400 kg / 10.5 m 3250 kg / 19,9 m
  1200 kg / 12.5 m 2775 kg / 23.1 m
  900 kg / 13.75 m 2515 kg / 24.3 m
    2065 kg / 28 m
Connectionless: max. mast height / platform length
  • the outriggers on the two sides are elongated and rotated on the mast side
  • buttresses on both sides extended and turned
  • internal installation (no wind load)
  • When using the airbag
  • 15 m / 12.5 m
  • 15 m / 12.5 m
  • 25 m / 12.5 m
  • 10 m / 10.5 m
  • 15 m / 21.5 m
  • 10 m / 31.1 m
  • 25 m / 31.1 m
  • 10 m / 18.3 m
Max. mast height, linked mast
  • Anchor distance
  • free release in operation
  • 135 m
  • (higher mast on request)
  • 18.5 m
  • 6.25 m
  • 135 m
  • (higher mast on request)
  • 18.5 m
  • 6.25 m
Max. Height with top anchor 25 m 25 m
Distance between anchors 18.5 m 18.5 m
Lifting speed 6.0 m / min 6.0 m / min
Chassis drive speed 13 m / min
Max. Allowable wind speed during installation and disassembly 12.7 m / s 12.7 m / s



Weights and Dimensions SM-SK-101 Single SM-SK-102 Double
Minimum transport height 2.35 m 2.35 m
Lowest platform level 1.15 m 1.15 m
Platform section
  • length
  • Width
  • weight
  • 1.3 m
  • 1.4 m
  • 145 kg
  • 1.3 m
  • 1.4 m
  • 145 kg
Platform extensions
  • 1.4 m
  • 2.0 m
  • 2.4 m
  • 1.4 m
  • 2.0 m
  • 2.4 m
Direct section
  • length
  • Width
  • height
  • weight
  • 0.7 m
  • 0.7 m
  • 1.25 m
  • 82 kg
  • 0.7 m
  • 0.7 m
  • 1.25 m
  • 82 kg
Lifting bag (fully equipped)
  • length
  • Width
  • height
  • weight
  • 1.5 m
  • 0.95 m
  • 0.95 m
  • 1410 kg
  • 1.5 m
  • 0.95 m
  • 0.95 m
  • 2 x 1410 kg
Chassis chassis
  • length
  • Width
  • weight
  • 4.95 m
  • 1.98 m
  • 1710 kg
  • 4.95 m
  • 1.98 m
  • 2 x 1710 kg



Electrical data SM-SK-101 Single SM-SK-102 Double
Power Lifting Machines 2 x 3 kW 4 x 3 kW
Supply voltage / frequency 400/50 V / Hz 2 x 400/50 V / Hz
Control voltage / frequency 230/50 V / Hz 2 x 230/50 V / Hz
Max. Starting current 60 A 120 A
Max. power consumption 8 kVA 16 kVA
Power supply fuses 3 x 16 A 3 x 16 + 3 x 16 A
Outputs for hand tools
  • Voltage
  • present
  • 2 x 230 V
  • 16 A
  • 4 x 230 V
  • 16 A



Safety tools SM-SK-101 Single SM-SK-102 Double
Mechanical safety brake Red Marker Red Marker
Emergency stop button, upper and lower limit switches Red Marker Red Marker
Electromagnetic brake Red Marker Red Marker
Fault current relay Red Marker Red Marker
Safety sensor during installation Red Marker Red Marker
Chassis drive limit switch Red Marker Red Marker
Direct Protection Nets Red Marker Red Marker
Security guardrail (1.10 m high) and scrolls Red Marker Red Marker
Automatic platform level control system in double mast version   Red Marker
Emergency lowering system Red Marker Red Marker
