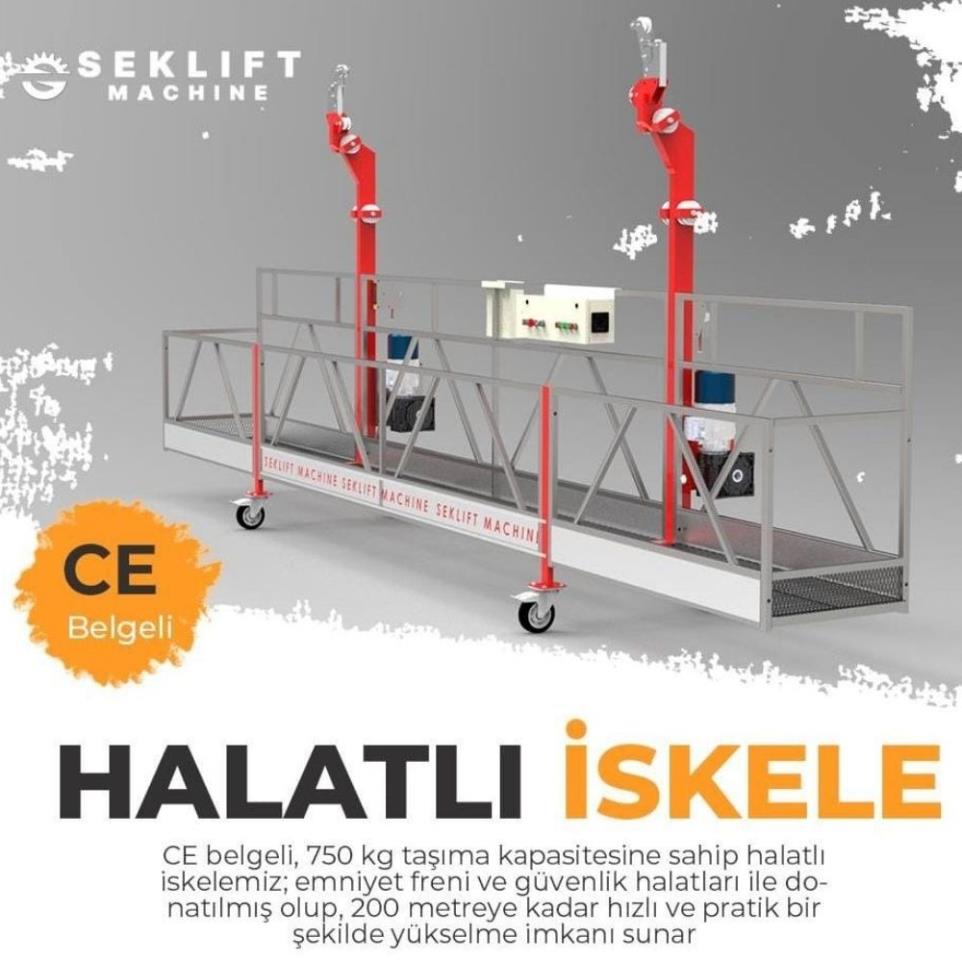

Electric Suspended Platform Features
➤ Fast Installation: It can be assembled in as little as 1 hour, allowing projects to start quickly.
➤ Modular Design: All parts can be assembled and disassembled, making transportation easier and increasing portability.
➤ Wide Height Range: It offers the ability to operate at various heights, ensuring effective use across large areas.
➤ Remote Control Function: The platform can be moved up and down via a wired remote control, while left and right movements are performed manually.
➤ Various Platform Sizes: Available in 1.5 m, 3 m, 4.5 m, and 6 m platform lengths to suit different project needs.
➤ Load Capacity: The SM-GAP-101 model has a capacity of 500 kg, while the SM-SK-101 model offers 1000 kg capacity, ensuring safe transportation of heavy loads.
➤ Motor Power: The SM-GAP-101 model features 2 x 1.1 kW motors, while the SM-SK-101 model provides higher performance with 2 x 1.5 kW motors.
➤ Vertical Speed: Both SM-GAP-101 and SM-SK-101 models have a climbing speed of 0.15 m/s, enabling fast and efficient operation.
➤ Safety Systems: Equipped with an electromagnetic brake and 2 block-stop brakes, ensuring safe stopping of the platform.
➤ Rope Diameter and Material: 10 mm (6x19) galvanized ropes guarantee durable and secure operation.
➤ Voltage: Both SM-GAP-101 and SM-SK-101 models operate at 380V.
Safety Measures
➤ Emergency Stop Switch: Available in both models, marked in red, allowing quick intervention in emergency situations.
➤ Manual Lowering System in Case of Power Failure: Ensures the platform can be safely lowered manually during power outages.
➤ 2 Block-Stop Mechanisms in Case of Rope Failure: Provides additional safety in case of rope malfunction.
➤ Tilt Sensor: Limited to a 14-degree inclination, ensuring safe operation of the platform.
➤ Upper and Lower Limit Switches: Prevent excessive upward or downward movement, which is critical for safety.
➤ Overload Detection System: Prevents exceeding the load capacity, ensuring safe operating conditions.
