Freight and Personnel Elevator Features
➤ Load Capacity:
2500 kg or 24 persons
➤ Maximum Lifting Height:
200 m (higher mast heights can be provided upon request)
➤ Cage Dimensions:
Length: 3000 mm
Width: 1500 mm
Height: 2000 mm
Cage Weight: 1635 kg (same for both single and double versions)
➤ Door Dimensions:
Front and Rear Doors: 1500 mm width, 2000 mm height
Side Door: 2.6 m width (for large materials)
➤ Cage Lifting Speed:
36 m/min, 54 m/min, or 90 m/min (selectable)
➤ Mast Dimensions:
Square Mast: 550 x 550 mm
Height: 1500 mm
Mounting Bolts: M24x260 / 10.9
Rack Module: 6 mm
Mast Weight: 133 kg (single rack), 149 kg (double rack)
➤ Electrical Data:
Hoisting Motors (36 m/min): 2 x 9.2 kW
Hoisting Motors (54 m/min): 3 x 7.5 kW
Supply Voltage: 400 V / 50 Hz
Control Voltage: 48 V / 50 Hz / 24 DC
Maximum Starting Current:
36 m/min: 120 A
54 m/min: 150 A
Maximum Power Consumption:
36 m/min: 33 kW
54 m/min: 40 kW
➤ Safety Features:
Mechanical Safety Brake (UC-5.0): Red marked
Emergency Lowering System: Red marked
Upper and Lower Limit Switches on Mast: Red marked
Safety Guardrail (1.10 m height): Red marked
Overload Detection Device: Red marked
Cage Door Locking Device: Red marked
Brakes – Spring-Loaded Disc Brake: Red marked
Safety Systems for Emergency Stop: Red marked
➤ Ground Station Dimensions:
Length: 3686 mm
Width: 2705 mm
Height: 2915 (2595) mm
Weight: 1410 kg (single), 1895 kg (double)
➤ Top Drive Unit:
Weight: 450 kg

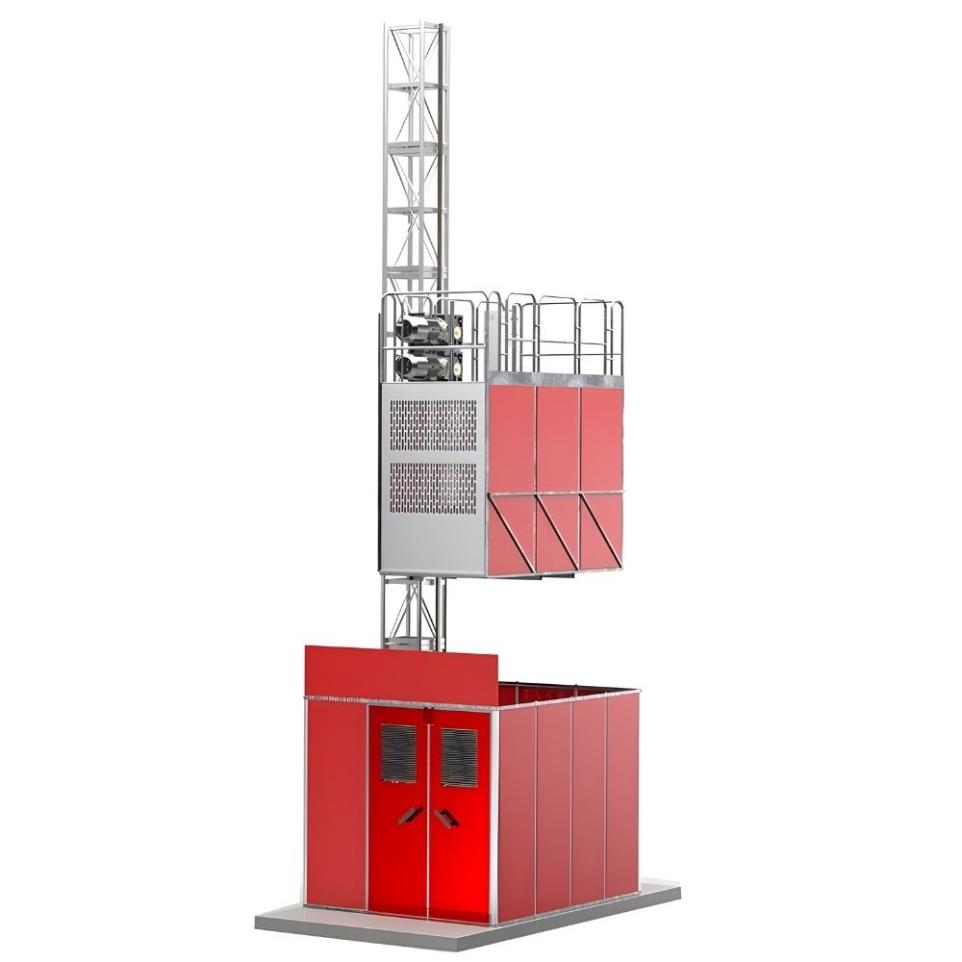

These features highlight the robust structure, safety measures, and high load capacity of the SM-GTP-101 Freight and Personnel Elevator model, providing an efficient and safe solution for both material and personnel transportation.
