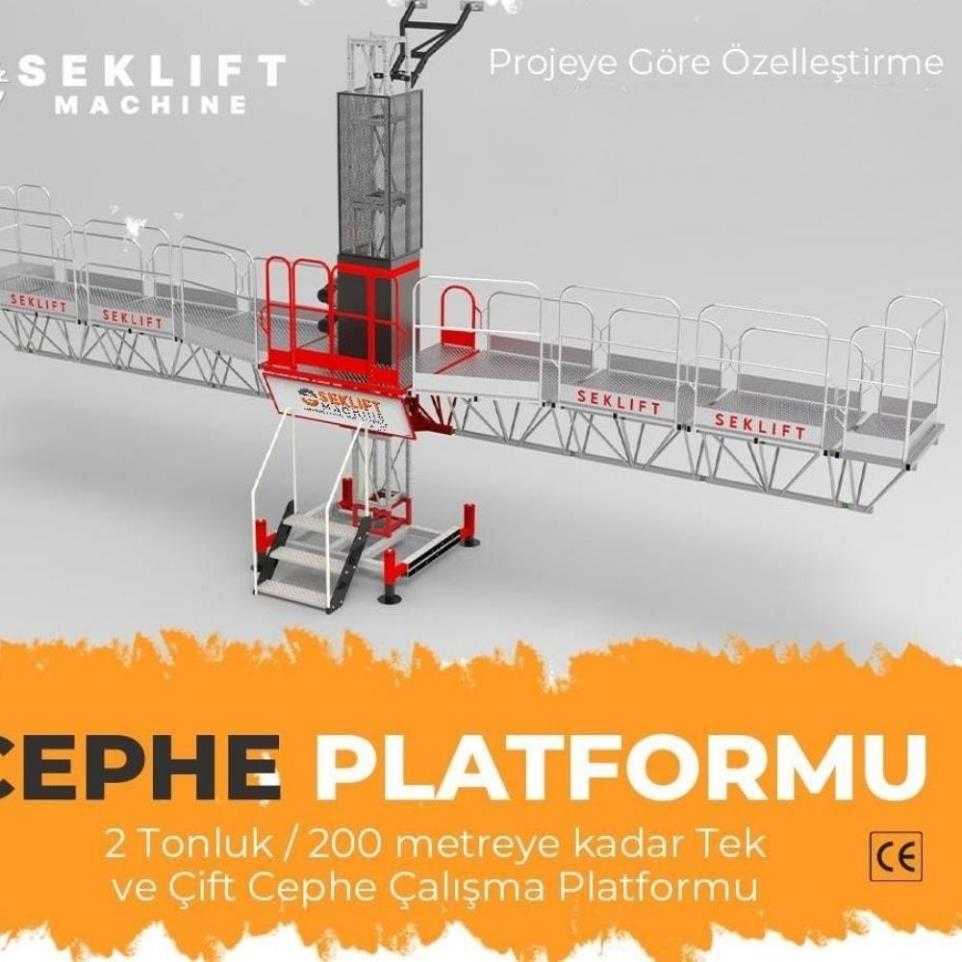

Single Mast Platform
➤ Lifting Capacity:
SM-SK-101 (Single Mast): 2000 kg
➤ Platform Length:
SM-SK-101 (Single Mast): Starts from 4.2 meters and can extend up to 10 meters
➤ Maximum Height:
SM-SK-101 (Single Mast): 135 meters (standard installation)
SM-SK-101 (Single Mast): Can be increased up to 300 meters (project-based)
➤ Electrical Data:
Power: 2 x 3 kW
Maximum Power Consumption: 8 kVA
Supply Voltage: 400/50 V / Hz
Control Voltage: 230/50 V / Hz
Maximum Starting Current: 60 A
➤ Safety Features:
Mechanical Safety Brake: Red marked
Emergency Stop Buttons, Upper and Lower Limit Switches: Red marked
Electromagnetic Brake: Red marked
Residual Current Relay: Red marked
Safety Sensor During Installation: Red marked
Mast Protection Nets: Red marked
Safety Guardrail (1.10 m height) and Toe Boards: Red marked
Emergency Lowering System: Red marked
➤ Platform Dimensions:
Length: 1.3 m
Width: 1.4 m
Weight: 145 kg
➤ Mast Section Dimensions:
Length: 0.7 m
Width: 0.7 m
Height: 1.25 m
Weight: 82 kg
➤ Hoisting Unit (Lifting Cage):
Length: 1.5 m
Width: 0.95 m
Height: 0.95 m
Weight: 1410 kg
➤ Chassis with Outriggers:
Length: 4.95 m
Width: 1.98 m
Weight: 1710 kg
These features demonstrate that the SM-SK-101 Single Mast Working Platform provides a safe, durable, and efficient solution.
