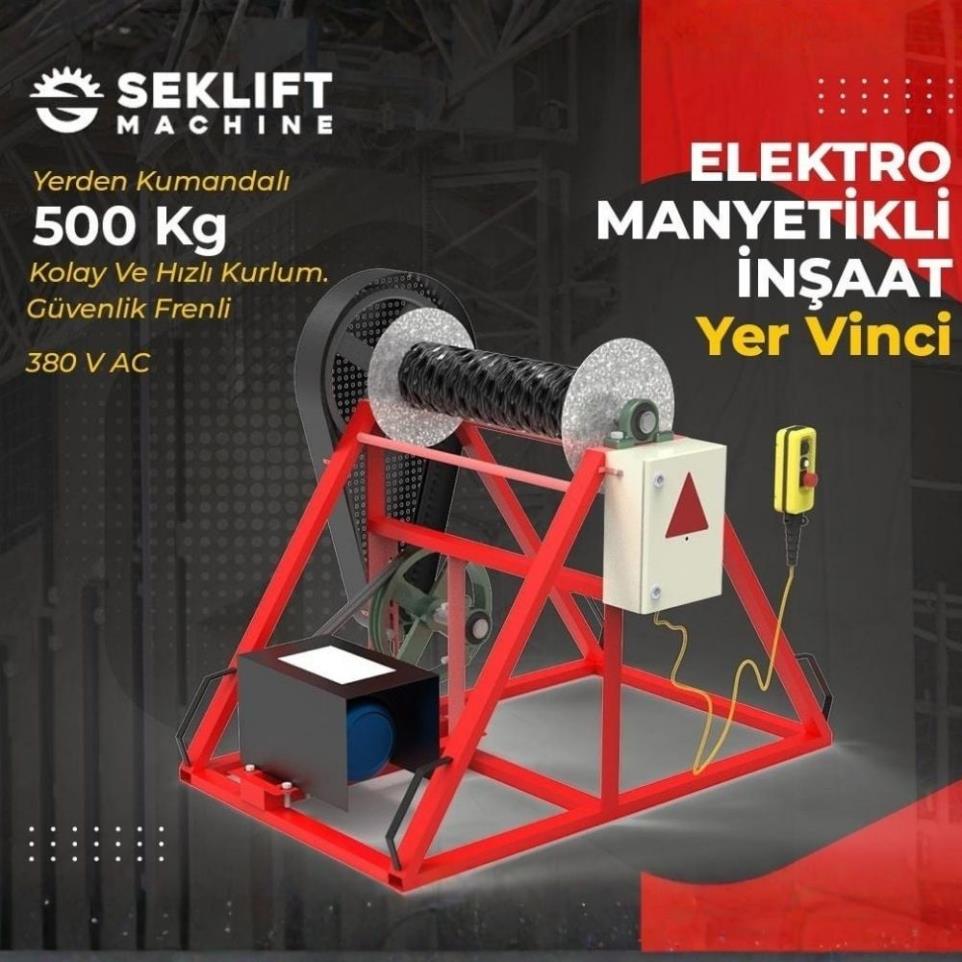

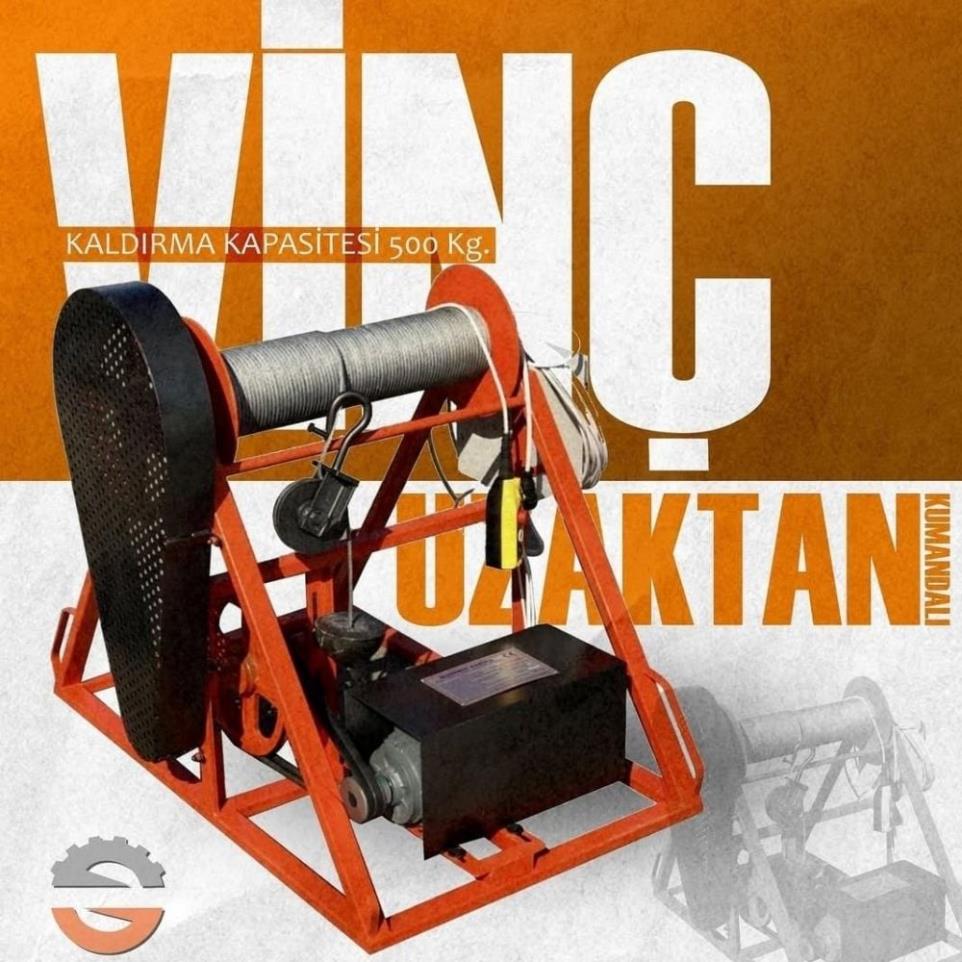

Ground-Controlled Crane Features
➤ Lifting Capacity:
500 kg
➤ Motor Type and Power:
Electric (Three-phase)
Power: 4 HP, 1400 rpm
Voltage: 220–380 V
➤ Climbing Speed:
0.5 m/s
➤ Bucket Features:
Bucket Volume: 125 liters
Number of Buckets: 2 units
➤ Brake System:
Magnetic disc brake (provides high safety)
➤ Control System:
Electric control (can be operated via remote control or wired control)
➤ Tripod Features:
Carrier Pipe: 2 ½ inches
Pipe Thickness: 3 mm
Support Pipes: 2 inches, 3 mm thickness
Rear Connection: 30 x 10 mm flat bar
Distance Between Support Legs: 230 cm
Carrier Pulley: 140 mm
Hook: 18 mm swivel pulley
➤ Weight and Dimensions:
Provides efficient use in construction, storage, and repair works with its high load capacity and durable structure.
These features demonstrate that the SM-GTP-102 Ground-Controlled Crane offers a powerful and safe material handling solution, enabling operators to work more efficiently and securely.
